SMALL DOUBLE WING FOLDING HOUSE
COMPACT SIZE
Compact footprint,
more usable space
STRONG & DURABLE
High quality steel
structure, safe &durable
CUSTOMIZABLE
Layout, color, andinterior can be
QUICK SETUP
Fully setup in
minutes
BETTER INSULATION
Wall & roof insulationfor a comfortable
living
CONTAINER EFFICIENT
1*40HQ can load6 units
customized
| 参数名称(中文) | 参数名称(英文) | 参数值 |

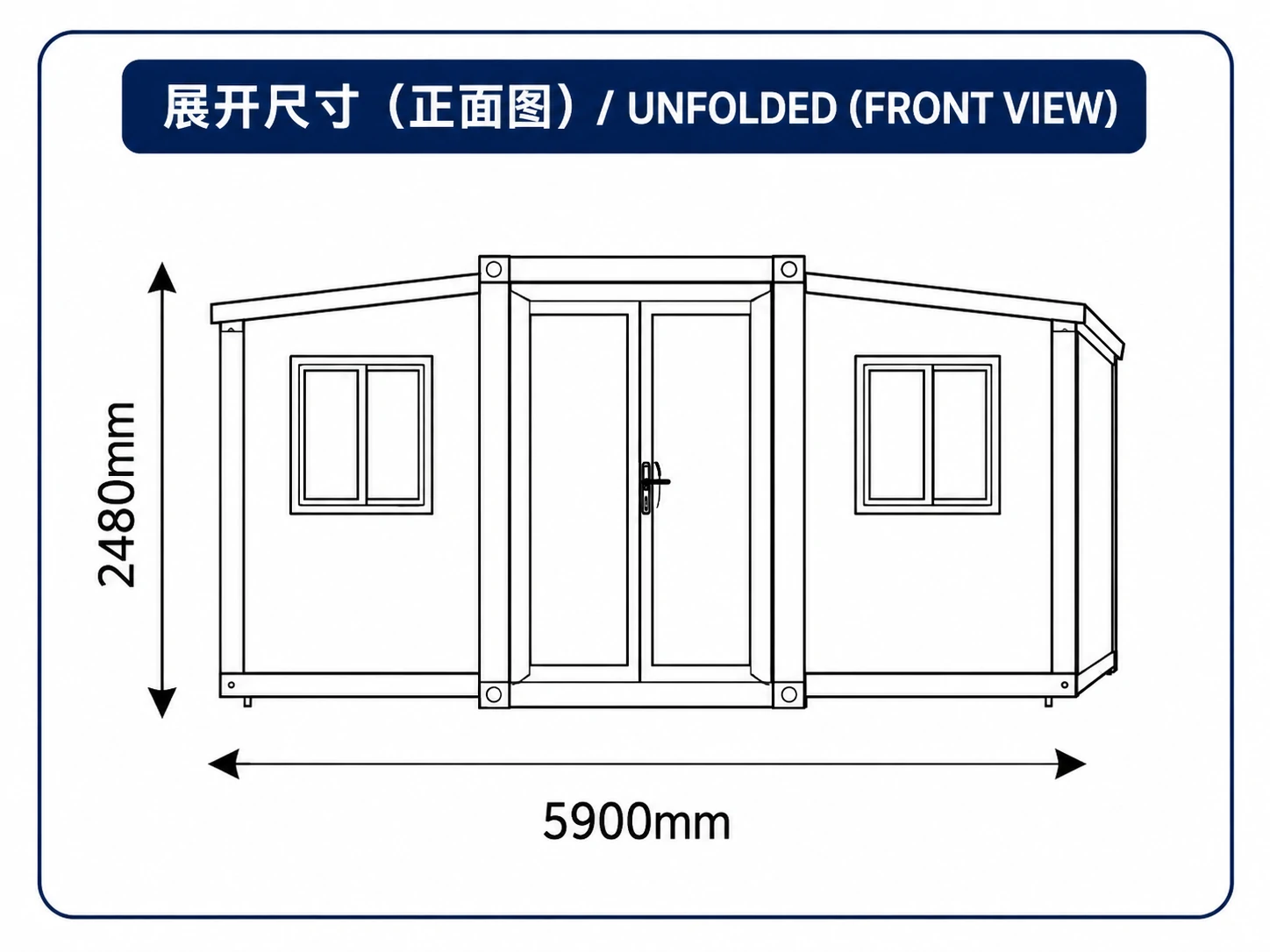

| 外形尺寸 (长*宽*高) | External Size (L*W*H) | 5900×4820×2480mm |
| 内部尺寸 (长*宽*高) | Internal Size (L*W*H) | 5640×4660×2240mm |

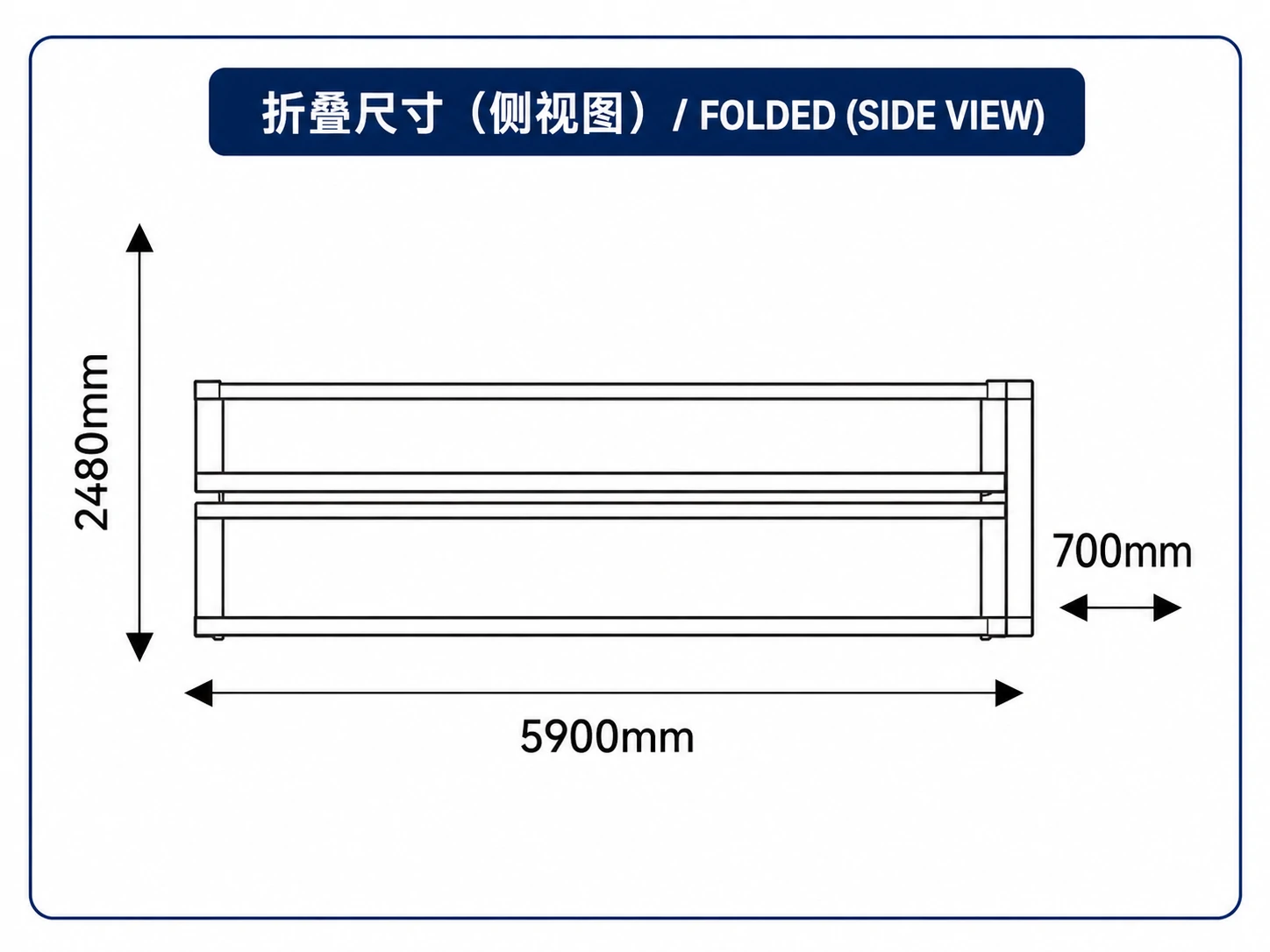

| 折叠尺寸 (长*宽*高) | Folded Size (L*W*H) | 5900×700×2480mm |
| 建筑面积 | Floor Area | 23.4㎡ |
| 总重量 | Gross Weight | 1800kg |
| 装柜数量 | Loading Quantity | 6 Sets / 40HQ |
| 主体结构 | Main Structure | Galvanized steel frame |
| 墙体板材 | Wall Panel | 75mm EPS color steel sandwich panel |
| 屋面板材 | Roof Panel | 50mm EPS panel |
| 地板 | Floor | Middle floor 15mm fireproof magnesium board; side floor 18mm construction board; optional decorative floor 2.0mm PVC / SPC / wood floor |
| 门 | Door | Anti-theft entrance door 970×1970mm |
| 窗户 | Window | 4 pcs plastic steel sliding windows 920×920mm |
| 电气系统 | Electrical System | Standard wiring, switches, sockets, square light, indoor lamp |
| 液压杆 | Hydraulic Rods | 4 pcs |
| 应用场景 | Application | Cabin, guest house, office, rental unit |
